HighShearMixer Production

🏠 Learn More https://zrr.kr/2b3BJI

🎥video https://youtu.be/CxluYxKzHTQ

PTK'S high performance production mixers for the fast and efficient mixing of pharmaceutical dry powder blends and wet granulation formulations using the combined actions of the impeller, chopper and liquid binders. The mixing process can be fully automated and configured to the optimal product environment, guaranteeing exceptional product stability time after time. Designed for easy functionality, robust and cleanable, all PM mixers show PTK's innovation and meet all GMP requirements.



Product Features

• Save all recipe/product data onto HMI for manual or automated mixing control
• Allows full data analysis and batch reporting
• Automated vessel lid lifting*
• Main Impeller lifting device for easy cleaning
• WIP cleaning*
• Jacketed vessel*
• Liquid binder
• Temperature and pressure monitoring*
• Many Powder loading options
• Integrated sieve or external granulators (cone mill)
• Pressure tested design to 12 bar
• HMI controls 21 CFR Part 11, with remote maintenance access
• Bottom driven single pot mixer.

---

Wet Granulation from R&D to Production Capacity

Since wet granulation is a batch process, the amount of material that can be processed in a given batch is dependent on the size of the mixing bowl. Our line of PTK mixer granulators come in a wide range of sizes, from an R&D unit with small bowl with a 1.1 liter working capacity to production granulators with a working bowl volume of approximately 640 liters [approx. 450 Kg capacity.] Product contact parts on all our granulators are constructed of type 316 stainless steel with a mirror finish as standard. Non-product contact exterior surfaces are of brushed type 304 stainless steel.

---

Simple and Special One Stop Solution



Jacketed Vessel

The vessel is jacketed type. Hot and Cold water supplied to the all cavity to control the vessel temperature











Vessel Lid Opening

The vessel lid is automatically lifted by an air cylinder at the touch of a button. According to room height, slide type or vertical type is available on requests.

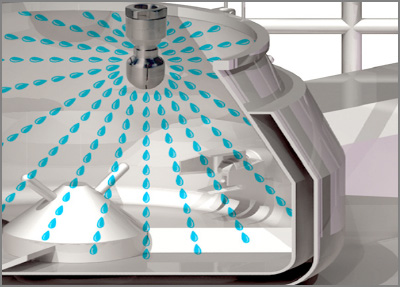

Cleaning - WIP

High pressure water is sprayed through purposefully placed nozzles to clean the inside of the vessel. The nozzles can be easily removed and reassembled.







---

Maximized Customization with in-House Program

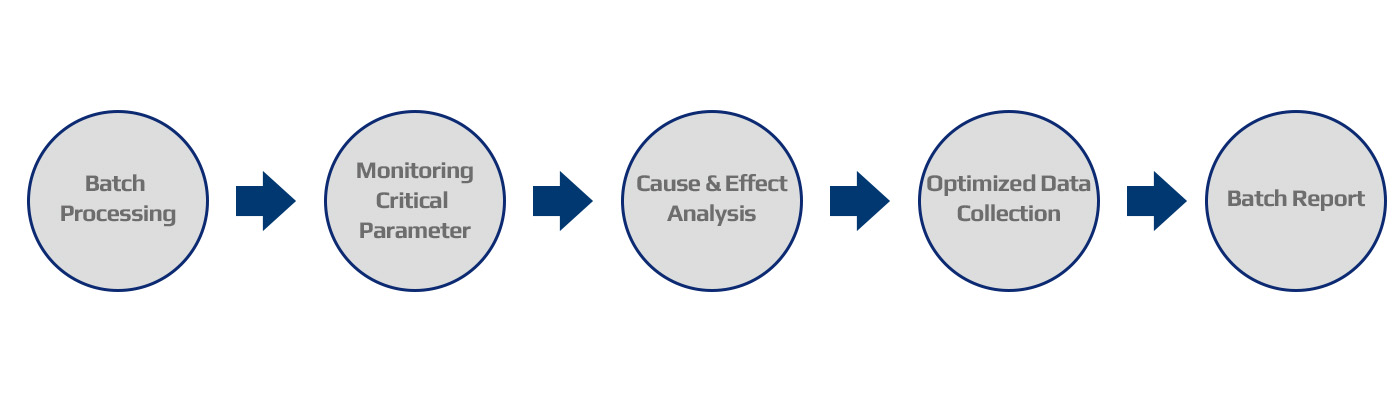

With the manual cycle graph, users can check all the real-time parameter graphs in a single table. The figure of every selected parameter shows by percentage for equalized visual graphics, the user can find operational discrepancies easily and deal with in time. This results in synthetic analysis of cause and effect.

This data acquisition affords the ability to learn more about a product's characteristics. If you utilize this data, even heavy processing tasks can be optimized and automated.

---
